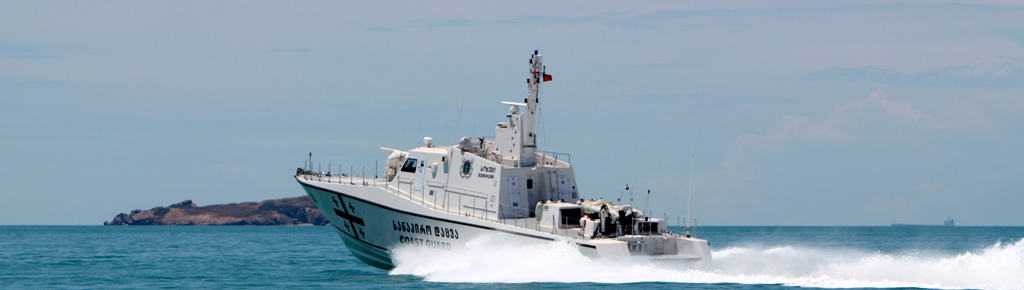

Overview

PRIMARY ROLES

Mastery of the littoral can not be presumed. It does not derive directly from command of the high seas. It is an objective which requires our focused skills and resources. ONUK MRTP®33 “Fast Patrol / Attack Craft has been designed for this purpose, capable of carrying out a wide range of littoral and coastal water law enforcement-naval duties and open sea rescue, including:

Patrol / Escort / Fast attack

Search and rescue

Anti smuggling

Pollution control

Anti terrorist protection of the coastal and offshore installations

Surveillance / Covert surveillance

Seal insertion-extraction

General Data

BACKGROUND

As of January 2004, 9 units of the “KAAN 29″ Class boats (31,70m, 45+ knots) under DNV classification (HSLC Patrol R2) are operational. Boat number 10 of 90 tonne was constructed as the first ONUK MRTP®33 (35,60m, 120 tonne, 47+ knots) as continuation of the project others are under construction at the shipyard.

The new member of the MRTP® (Multi Role Tactical Platform) family of boats, a concept created and developed by Kaan N.Z. Onuk; has improved sea keeping, highly stealthy characteristics, and is able to carry larger mission equipment/payload such as combined 30mm gun and short range SSM stabilized launcher, surface-to-surface medium range F&F fiber guided missiles, EO fire control systems and decoys.

PERFORMANCE

Speed and seakeeping:

The ONUK MRTP®33 has been developed for a tough professional use with excellent performance qualities at both low and high speeds and strong emphasis on seakeeping. The ONUK OE-01 deep V hull, depending on engine selection and boat configuration, will enable the boat to reach speeds up to 64 knots in calm waters and up to 40 knots in Sea State 4. ONUK MRTP®33 has a soft and dry ride in adverse conditions, offering, thus, an outstanding platform for the various tasks in the brown waters and the open sea.

The MJP water jet drive system provides extreme maneuverability with high precision control and a very shallow draught, enhancing the operation in confined waters or intercepting/boarding larger ships in rough seas.

CONSTRUCTION AND COMPONENTS

ONUK MRTP®33 is built in advanced composites to satisfy the very tough requirements of an intensive professional use together with a long service life. The benefits of the advanced composite structure are:

WEIGHT REDUCTION

  • Improved Performance
  • Increased Payload
  • Fuel Savings

CORROSION RESISTANCE

  • Longer service life
  • Maintenance savings

IMPROVED

  • Threat avoidance/detection
  • Ballistic protection

REDUCED SIGNATURES

  • Machinery vibration/acoustic
  • Magnetic signature
  • Heat signature

The hull and superstructure are constructed to Det Norske Veritas (DNV) HSLC Patrol R2 classification. All boats of the series are delivered with the relevant DNV Certificates.

The helm station and the interiors have been designed in line with the SAE recommendations for ergonomics to provide the crew with maximum comfort and minimum fatigue in prolonged use in heavy seas.

Machinery and propulsion
The CODAG high-speed propulsion system consists of two MTU 16V2000M90 diesels and a Honeywell TF50 gas turbine; all driving through MJP water jets. The diesels will allow 28 knots patrol speed, while the gas turbine will enable the boat to reach it’s maximum speed. CODOG and all diesel propulsion systems are available on request. Depending on the mission and speed requirements, the ONUK MRTP®33 can be equipped with different components for optimum operational efficiency/price ratio.

The mechanical components are selected with the intensive professional use in mind. They offer a high level of reliability, despite the extreme performance requirements.

MISSION MODULES

ONUK MRTP®33 can be equipped with various mission modules depending on the customer requirements. Despite the size of the platform, these modules have been integrated with the modularity and reconfigurability objectives in mind. Thus, the platform can be reconfigured with different mission modules, increasing dramatically the operational flexibility and reducing the costs. The mission modules would be:
Multi weapon mounts.

  • Stabilized naval turret with up to 30 mm. gun (+ short range SSM).
  • Medium range SSM (Total weights up to 5 tons).
  • Short range SAM.
  • 2 x 12.7 mm. heavy MG.

Multi sensor surveillance unit
(EOD with capabilty of controlling the main gun).
Search and rescue equipment
Decoys
SOF (Special Operation Forces) support/SDV (Seal Delivery Vehicle)
Pollution control

Technical Specifications
DIMENSIONS
LOA 35.60 m
Beam, max 6.70 m
Draught 1.40 m
OPERATIONAL CHARACTERISTICS
Maximum speed, at full load 47+ knots(Up to 65 knots available depending onengine selection and configuration)
Propulsion All Diesels: 2 x 2720 kW MTU, 16V4000M90 (Other engines available)
CODAG available
Drive system Water Jets, MJP 753 DD (for all diesels)
Water Jets, 3 x MJP 650/750 (for CODAG)
Range 800 nautical miles (at 33 knots)
CAPACITIES
Fuel capacity 20.00 m³
Fresh water 1.50 m³
Endurance 3 days
Crew Up to 20
